RAG Based WhatsApp Chatbot for Telsa Cars

5 minute read

Published:

Project Overview

This repository contains three core Python files, ingest.py, app.py, and main.py designed to enable a WhatsApp chatbot that can intelligently answer questions about Tesla car manuals. The bot uses a Retrieval-Augmented Generation (RAG) approach to fetch information from Tesla’s manuals and respond to user queries via WhatsApp.

The bot is hosted using FastAPI, and the setup integrates ngrok for local development and testing and Twilio for receiving and sending messages. Pinecone is used for vector storage of Tesla manual chunks, and OpenAI is used for embedding generation. Finally, LangChain is leveraged for retrieval and response generation from the documents.

Considering the right RAG approach

While working LLMs which have a knowledge cut-off of more than an year, it is important to consider the right RAG approach.

In order to evaluate which is the best embedding model to consider, chunking strategy, chunk size/overlap and the embedding dimension, I highly recommend using vectorize.io.

This platform evaluates many embedding models and provides a comprehensive analysis of their performance. It also offers a visual representation of the data, making it easier to compare and choose the best model for your specific use case.

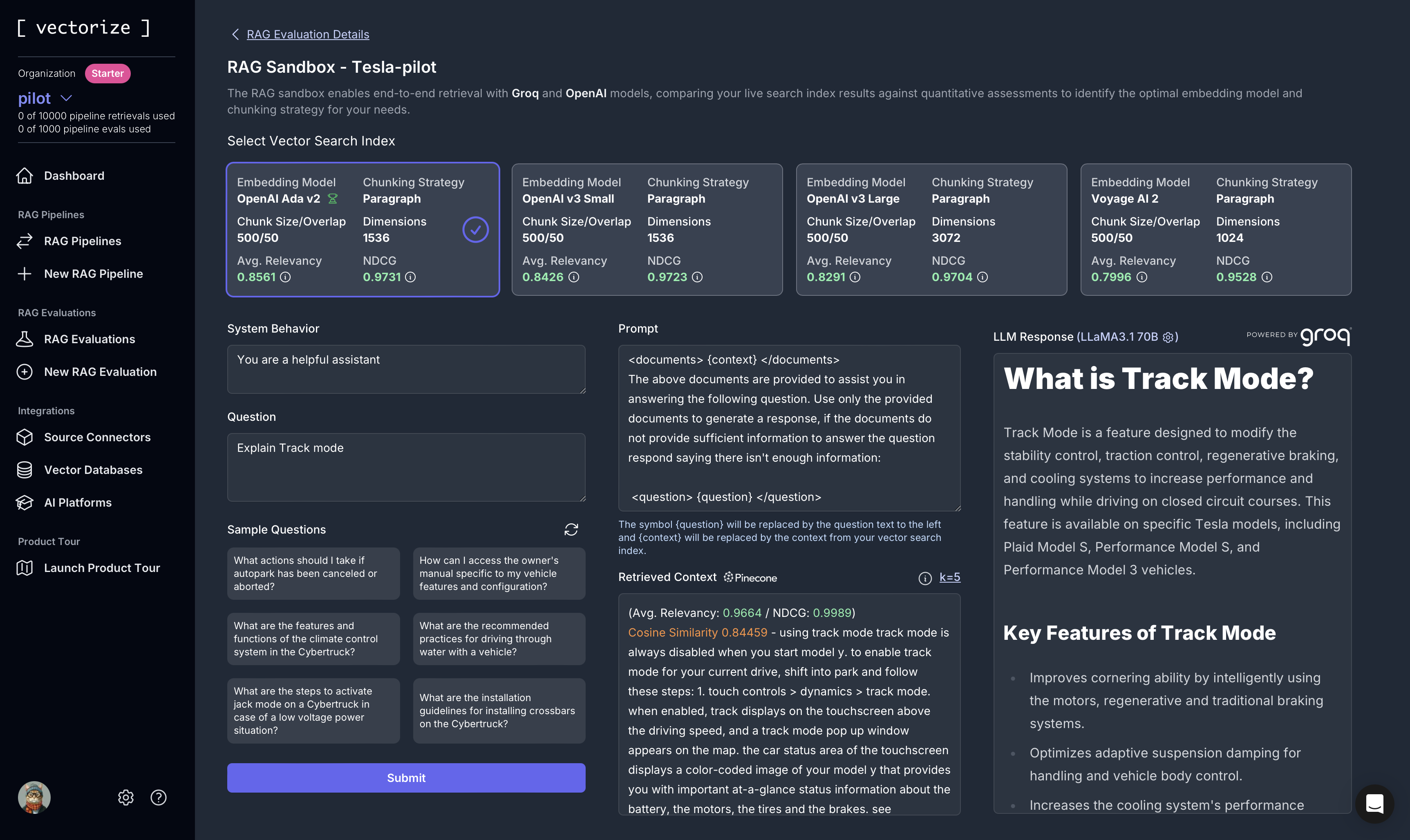

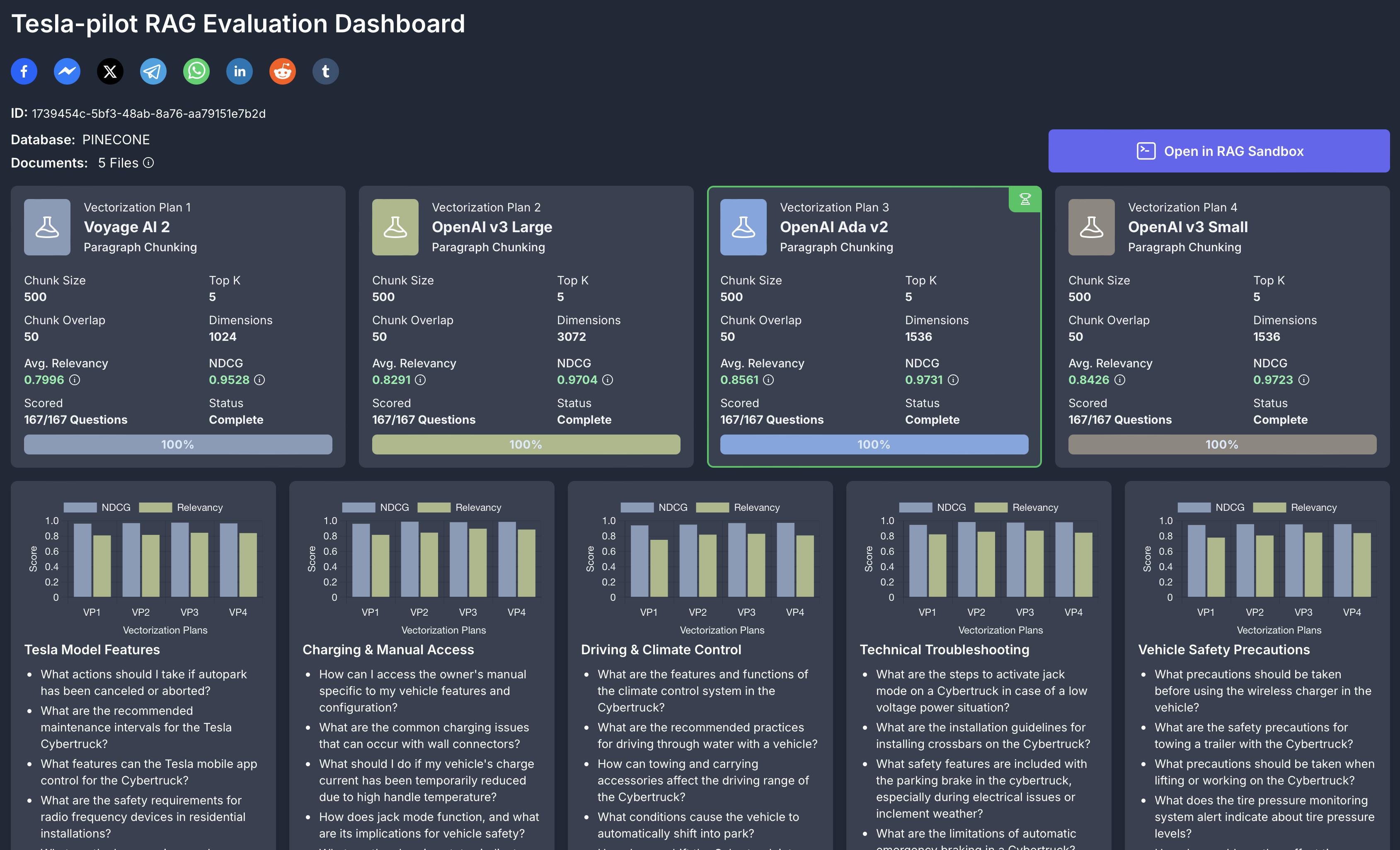

Check out the screenshots below.

It is a very simple platform to use and I highly recommend it to anyone who is working with LLMs and RAG before making a decision.

How It Works

  • ingest.py: Handles loading, chunking, and embedding Tesla manuals into Pinecone.
  • app.py: LangChain that utilizes meta-llama/Meta-Llama-3.1-8B-Instruct-Turbo LLM for generating responses.
  • main.py: Hosts the backend with endpoints catering to whatsapp as well as web based requests.

Setup

Prerequisites

  • Python 3.8+
  • Twilio account and WhatsApp sandbox setup
  • Ngrok for exposing your local server and development.
  • Pinecone API key
  • OpenAI API key
  • TogetherAI API key.

Installation

  1. Clone the repository:

    git clone https://github.com/sher-somas/Tesla-owners-manual-chat-bot.git
cd Tesla-owners-manual-chat-bot

  2. Install the required dependencies:

    pip install -r requirements.txt

  3. Configure your environment variables in a .env file:

    TWILIO_ACCOUNT_SID=<your_twilio_account_sid>
TWILIO_AUTH_TOKEN=<your_twilio_auth_token>
PINECONE_API_KEY=<your_pinecone_api_key>
OPENAI_API_KEY=<your_openai_api_key>
TOGETHER_API_KEY=<together_api_key>

Ingest the Tesla Manuals

Before you can query the Tesla car manuals, you need to process and upload them to Pinecone using ingest.py:

  1. Place all the PDF manuals in a folder named manuals.

  2. Run the ingestion script:

    python ingest.py --folder_name manuals

This script will:

  • Load the Tesla manuals from the specified folder.
  • Split them into smaller text chunks.
  • Use OpenAI’s embedding model to generate vector embeddings.
  • Upload the chunks along with their embeddings to Pinecone for later retrieval.

File Explanations

1. ingest.py - Retrieval-Augmented Generation (RAG) Data Preparation

This file is responsible for preparing the Tesla manuals for retrieval. The key steps are:

  • PDF Loading: The script reads Tesla car manuals from a folder of PDFs.

  • Chunking: The PDFs are split into smaller, manageable chunks of text using a chunking method. These chunks make it easier to retrieve relevant information based on user queries.

  • Embedding: Each chunk is passed to OpenAI’s embedding model (text-embedding-ada-002) to generate vector representations.

  • Pinecone Indexing: The generated embeddings are uploaded to a Pinecone index called tesla-manuals. This allows for efficient vector search, enabling the chatbot to retrieve the most relevant chunks when a user asks a question.

2. app.py - Hosting the API and Twilio Integration

This file parses the incoming WhatsApp messages via Twilio and responds to them using the RAG approach.

  • RAG Pipeline: The RAG pipeline in app.py works as follows:
    1. A user asks a question on WhatsApp.
    2. The Pinecone index is queried using the user’s question to find relevant chunks from the Tesla manuals.
    3. The retrieved chunks are combined with the question and passed to a language model (meta-llama/Meta-Llama-3.1-8B-Instruct-Turbo) that generates a human-readable answer.
    4. The answer is returned to the user via Twilio’s messaging API.
  • Twilio Integration: The FastAPI app defines an endpoint (/question) for web based requests and (/question/whatsapp) for whatsapp requests that Twilio will hit whenever a new WhatsApp message is received. The user’s query is processed, the chatbot generates a response, and the response is sent back to the user on WhatsApp.

Running the API with Ngrok and Twilio

  1. Start the Flask server locally:

    uvircorn main:app --reload

  2. Expose the server using ngrok for testing locally:

    ngrok http 5000

    This will generate a public URL (e.g., http://your-ngrok-url.ngrok.io) that you can use for Twilio.

  3. Configure your Twilio WhatsApp sandbox:

    • Go to your Twilio Console and under WhatsApp Sandbox, configure the Webhook URL to point to the ngrok URL:

      http://your-ngrok-url.ngrok.io/answer
  4. Now, you can send messages to your Twilio WhatsApp number, and the chatbot will respond with relevant information from the Tesla manuals!

Example Interaction

User: What is Ludicrous Mode?
Bot: Ludicrous Mode is a feature in Tesla cars that allows for faster acceleration by increasing the output of the electric motors.

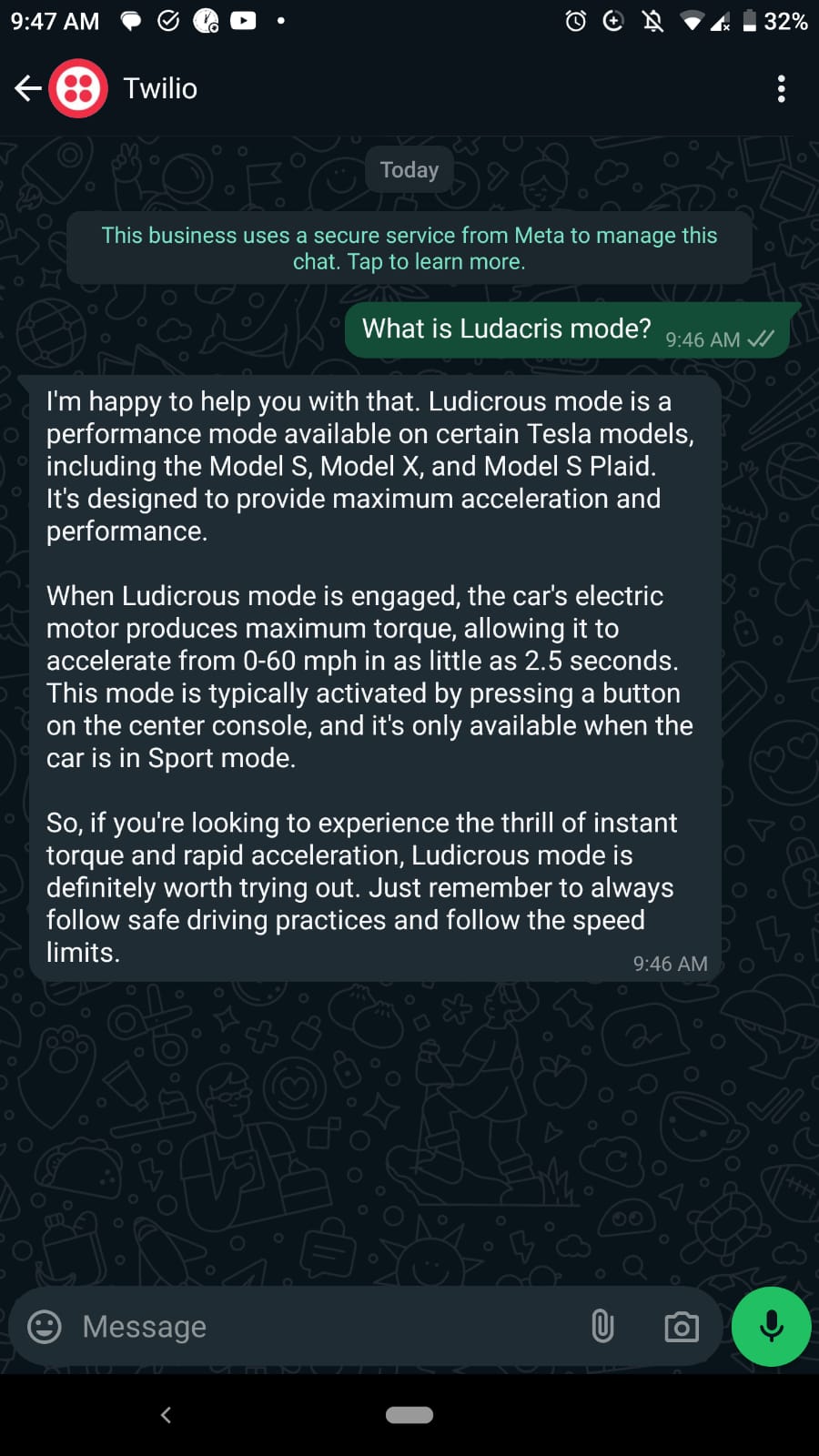

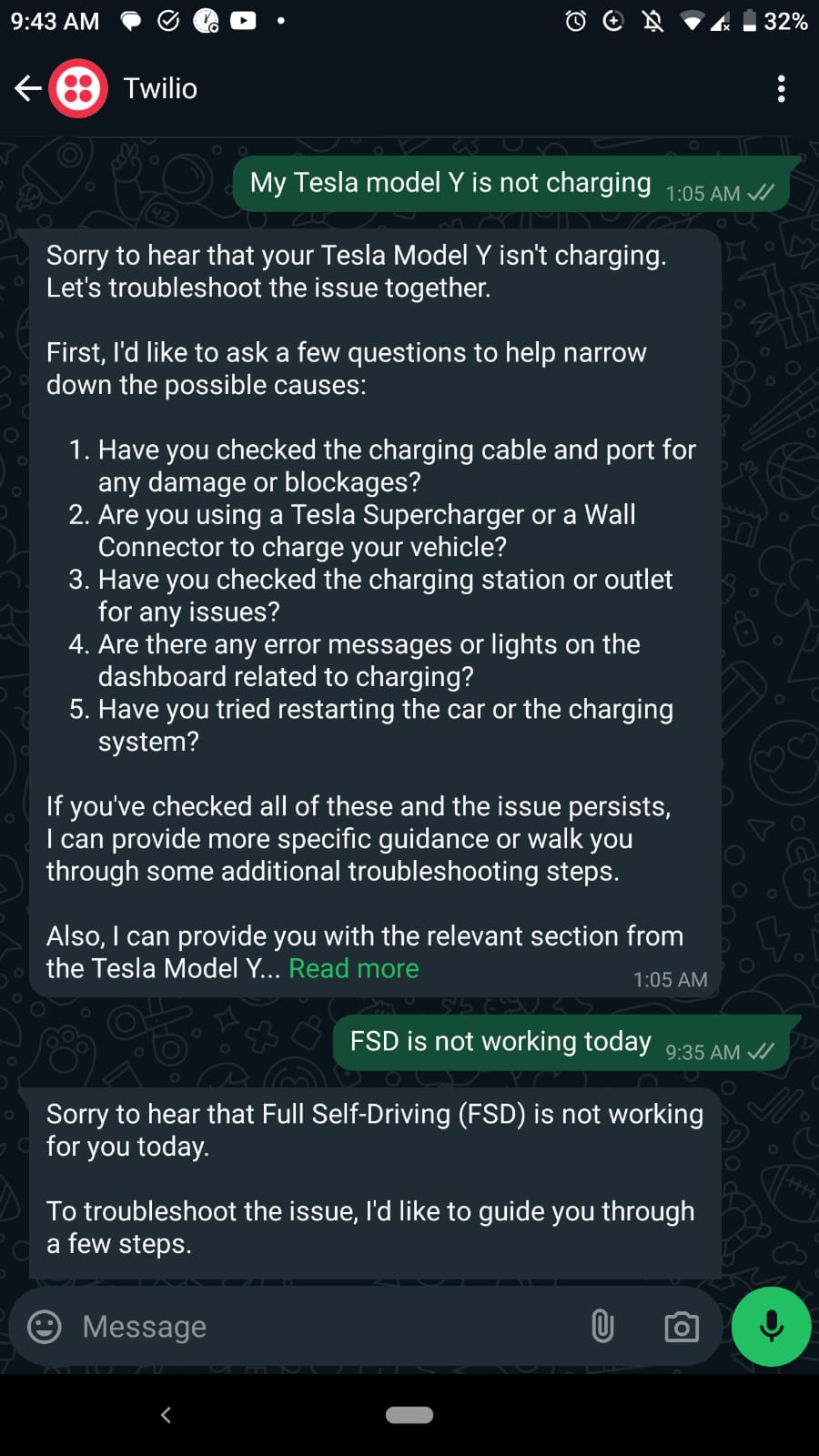

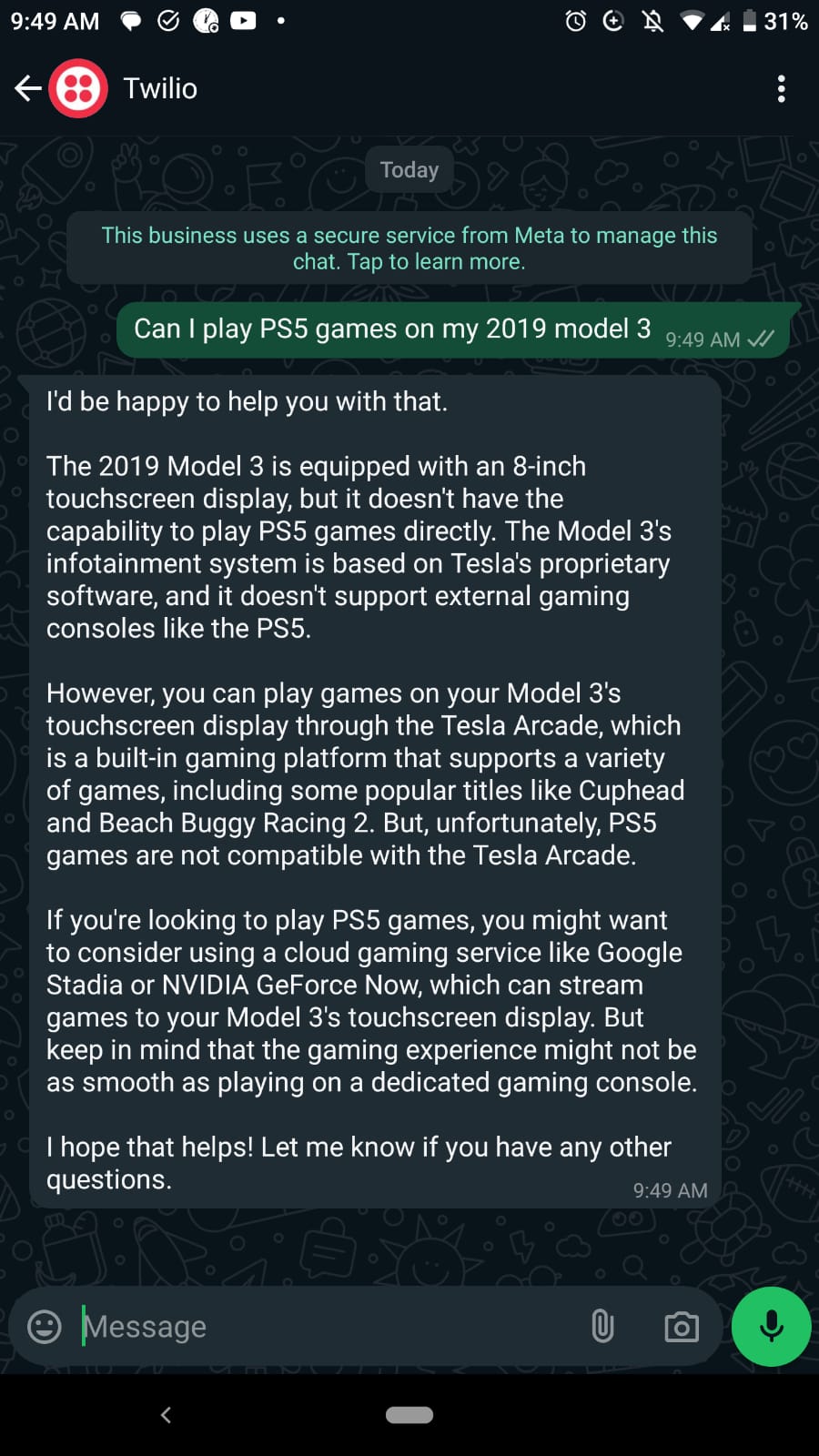

Screenshots from Whatsapp

Conclusion

This project demonstrates how to implement RAG based approach using Pinecone, LangChain, Twilio, and OpenAI to build an intelligent WhatsApp chatbot. The chatbot can retrieve and respond to questions about Tesla manuals, offering a useful and friendly interface for users to interact with Tesla’s documentation.
